[TPR] 4 TO 4.5 NEG CASTER WITH PPC

[DENNIS ANTENUCCI]

Afternoon TPR

FWIW
While I already purchased Johnny Woods modified A-Arms where I hope to get 5-7 degrees neg caster…..here is Larry’s mods where he got 4 to 4.5 neg caster.

Dennis

Sent from Mail for Windows

From: Larry Stock
Sent: Monday, April 4, 2022 10:48 AM
To: DENNIS ANTENUCCI
Subject: Re: QUARTER WINDOW RUBBERS

I got 4 & 4.5 degrees of caster with the offset bushings and shaving the upper front ball joint.
02001P

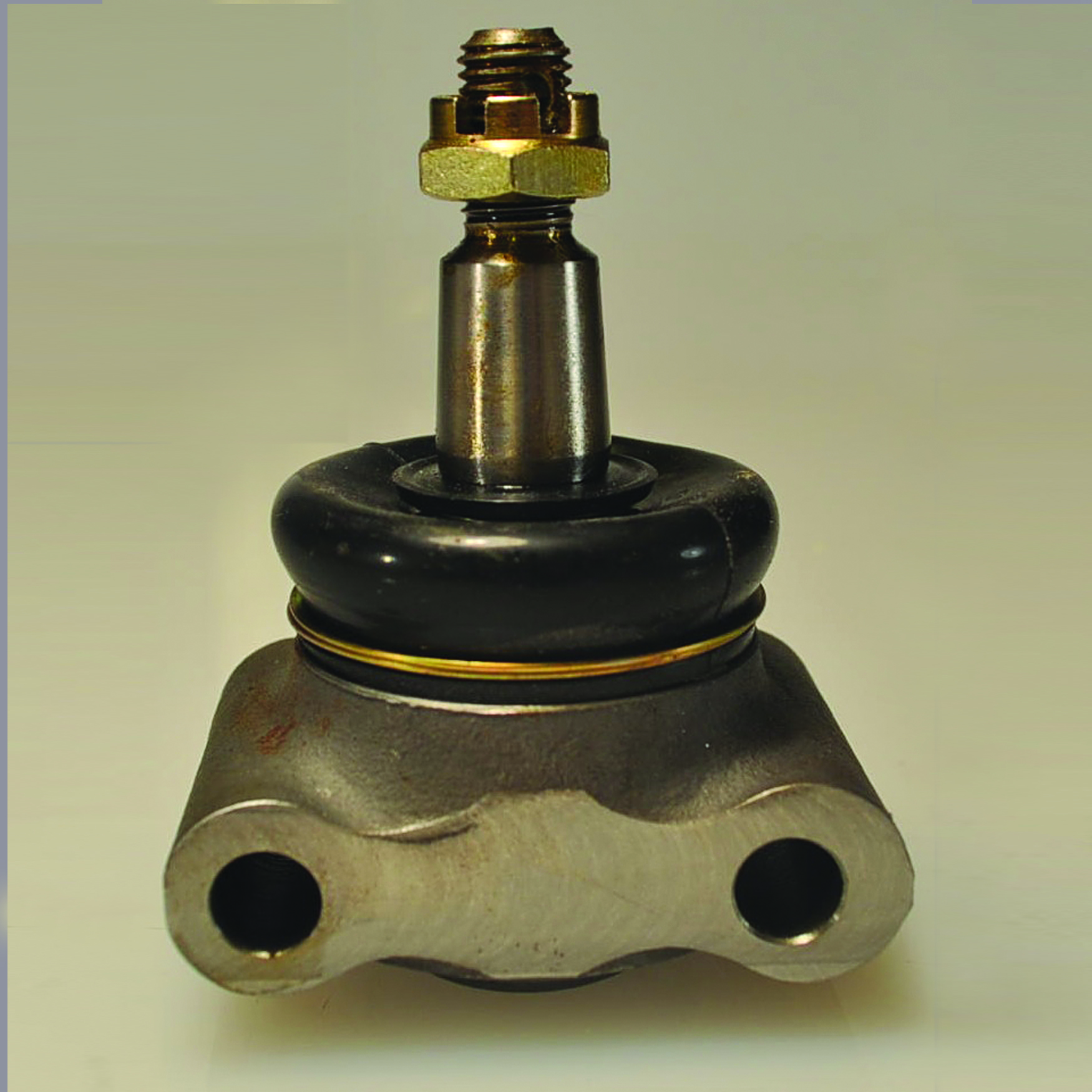

PPC Front Upper Ball Joint Modified for + Caster
135.00
I think the Pantera may want up to 6-9 degrees of front caster.

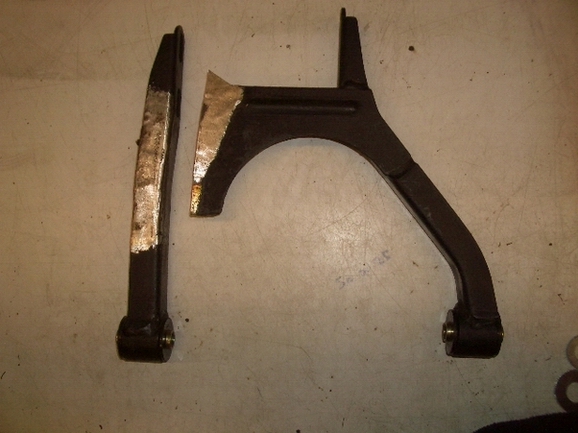

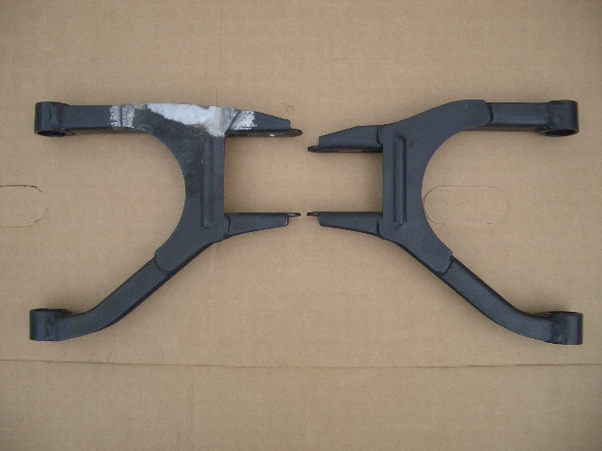

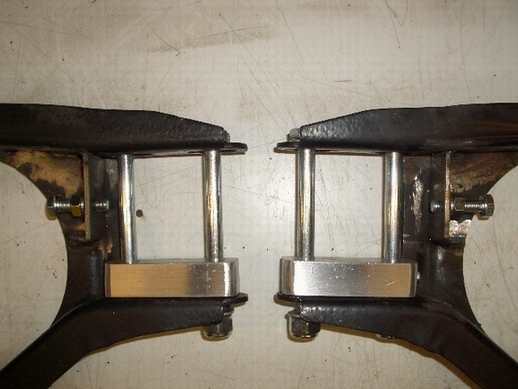

Here are the A-Arm Sectioning and spacer photo’s I have you can work with.

Do you have ASA’s Address handy?

Larry Stock

Pantera Parts Connection LC
550 Mallory Way
Carson City NV 89701

www.PanteraParts.com
PH  775-283-4411
Fax 775-283-4410
Cell 1-800-DeTomaso 800-338-6627




On Apr 4, 2022, at 10:23 AM, Larry Stock <larrys at panteraparts.com> wrote:

I have both, I assume you probably want a good used one.
Larry

Regarding my Pantera underside downforce work, Here is an excerpt from
https://www.hagerty.com/media/motorsports/are-f1-and-nascar-manufacturing-drama/?utm_source=SFMC&utm_medium=email&utm_content=MED_UN_NA_EML_UN_SaturdayRoadTrip&hashed_email=fb1f43ec025e8215388f0ce0823a6e37e643701df67837453081ee2c33561ece

For the first time since the 1980s, when F1 cars resembled upside-down airplanes, ground effects are utilized in the aero regulations for the new car. Its floor has two large channels running front-to-back. Air travels under the vehicle and through the Venturi-shaped channels, which creates an area of low pressure and “sucks” the car to the track. Since the underside of the car provides much of the grip, the need for air on the wings to generate downforce is reduced.




-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://teampanteraracing.com/pipermail/tpr_teampanteraracing.com/attachments/20220404/0d372df1/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 02001P PPC Front Upper Ball Joint.jpg
Type: image/jpeg
Size: 1979712 bytes
Desc: not available
URL: <http://teampanteraracing.com/pipermail/tpr_teampanteraracing.com/attachments/20220404/0d372df1/attachment-0006.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

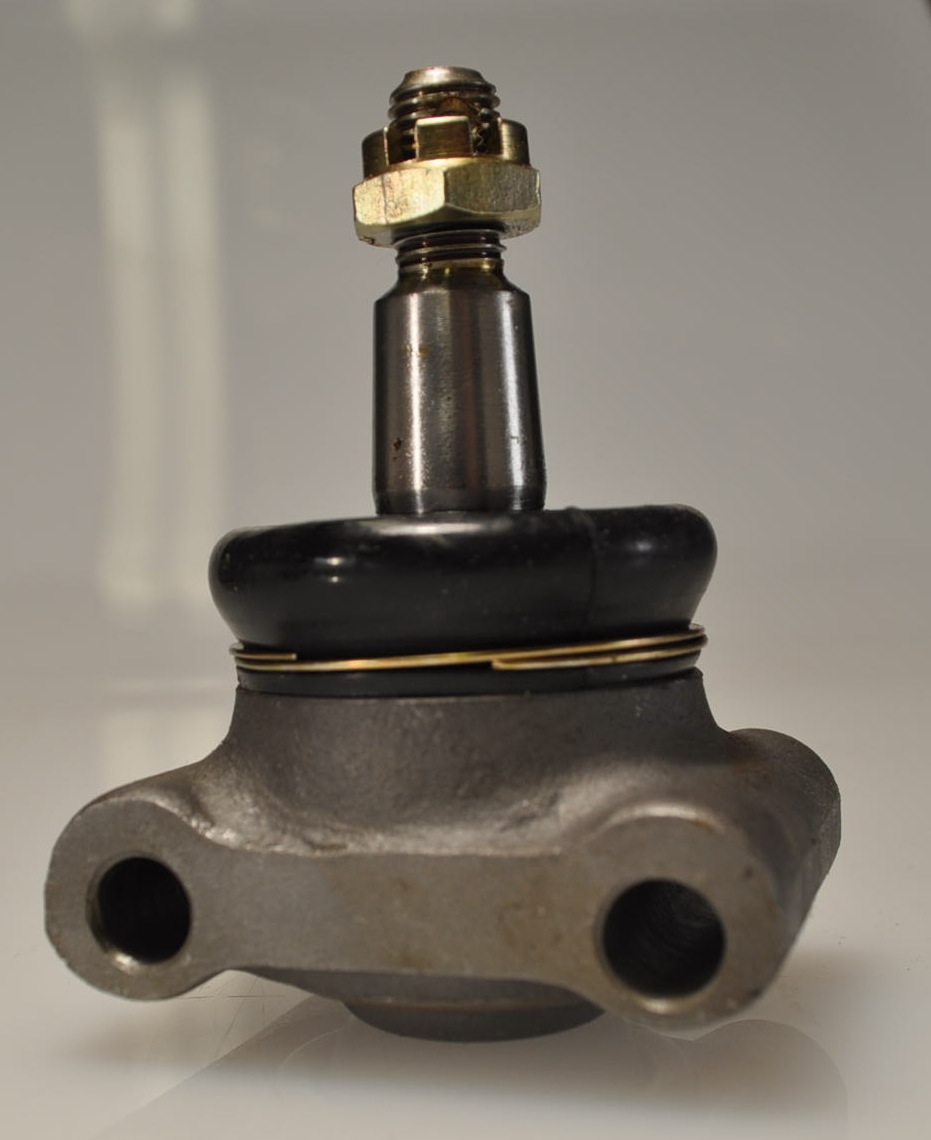

Name: 02001A frnt upper ball joint.jpg
