Presenting your daily recommended dose of car porn, I bring the following:

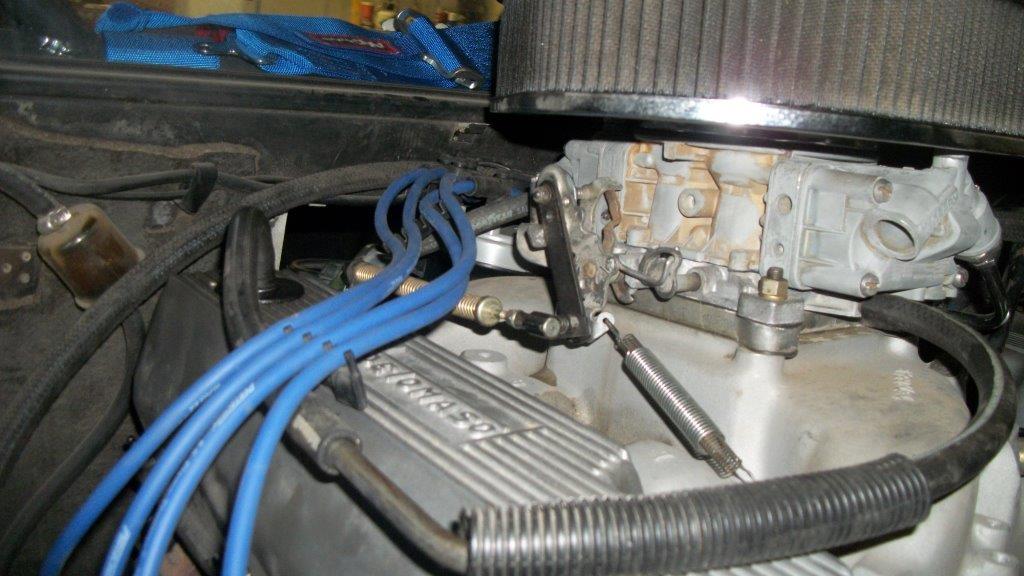

- Mark's carb, rebuilt, installed, tuned and awesome, along with a
visual of new Blue Petronix spark plug wires

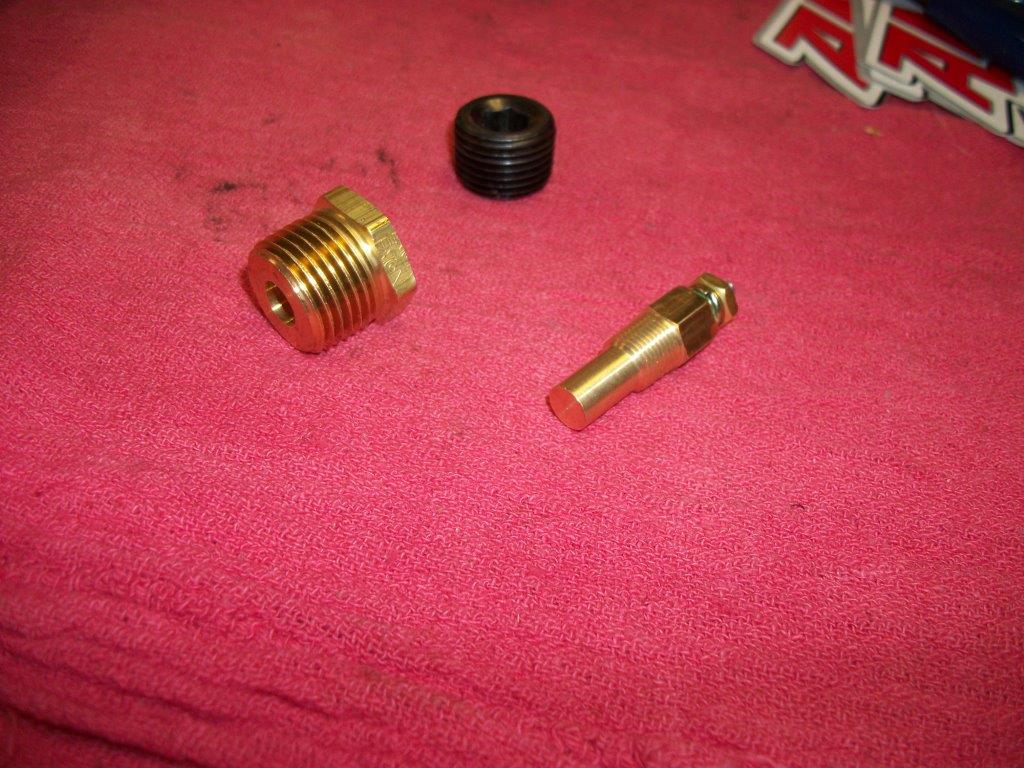

- The oil temp sender, with adapter to fit the large front pan bung

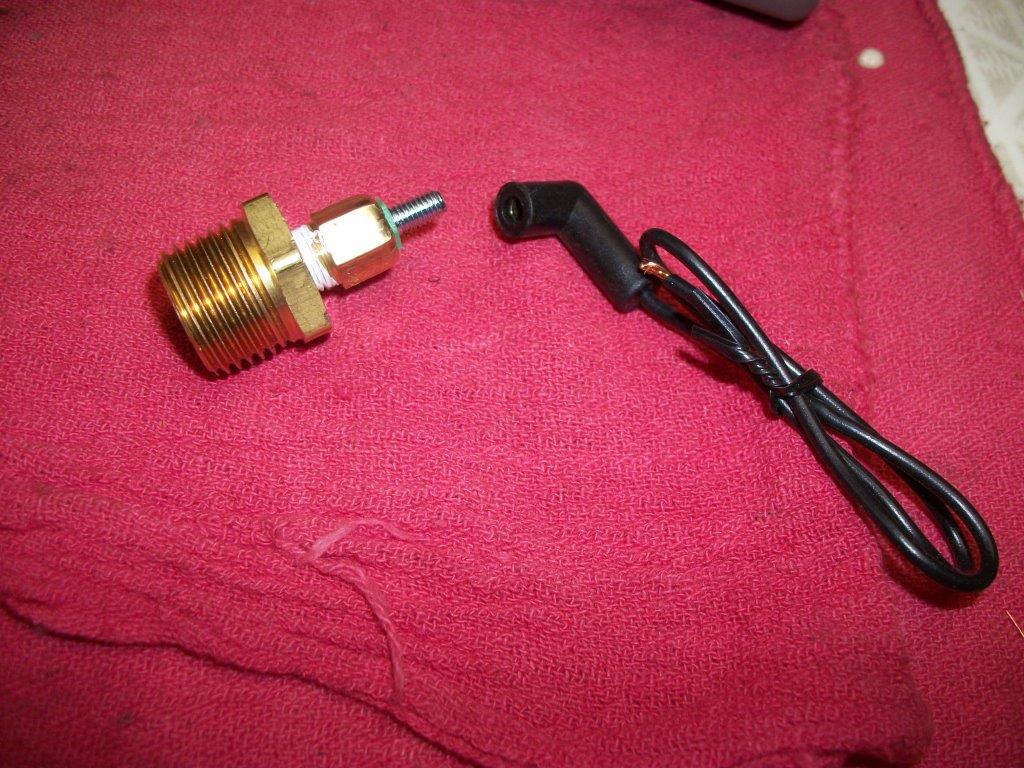

- The assembled temp sender to adapter with teflon tape and the wire
fitting.  I like these push on fittings more than using the teensy nut,
and man was this one tight.  I also used a multi-meter at each stage of
installation to make sure the teflon tape wasn't interfering with a good
ground.  All is good.

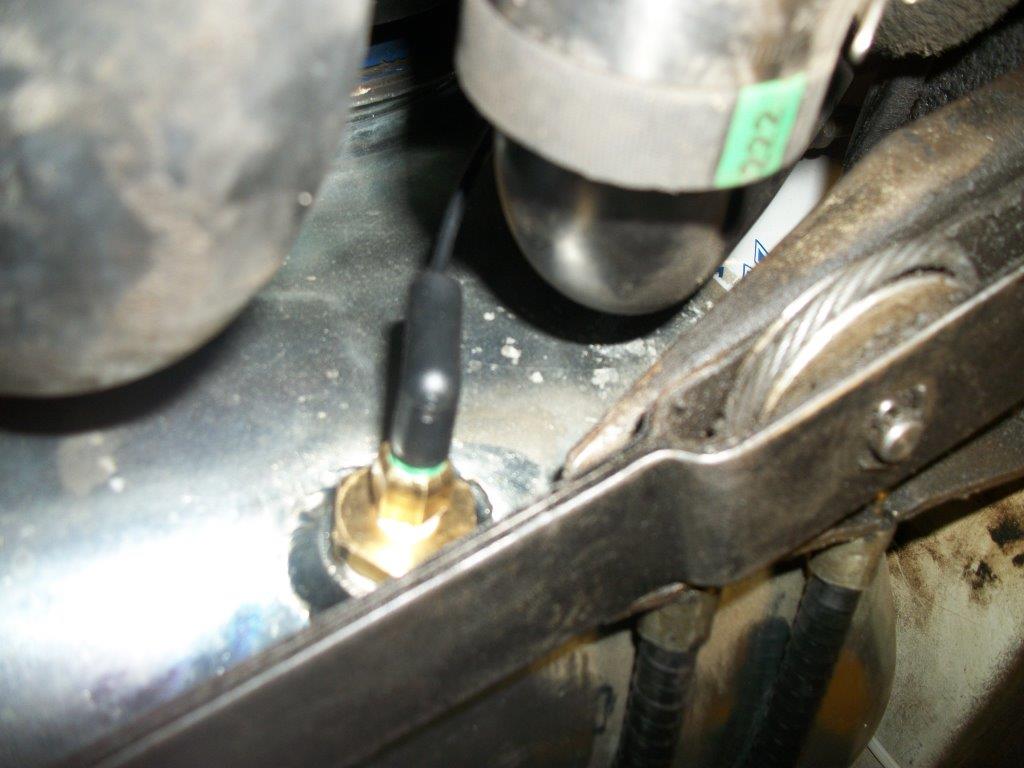

- The oil temp sender installed and wired

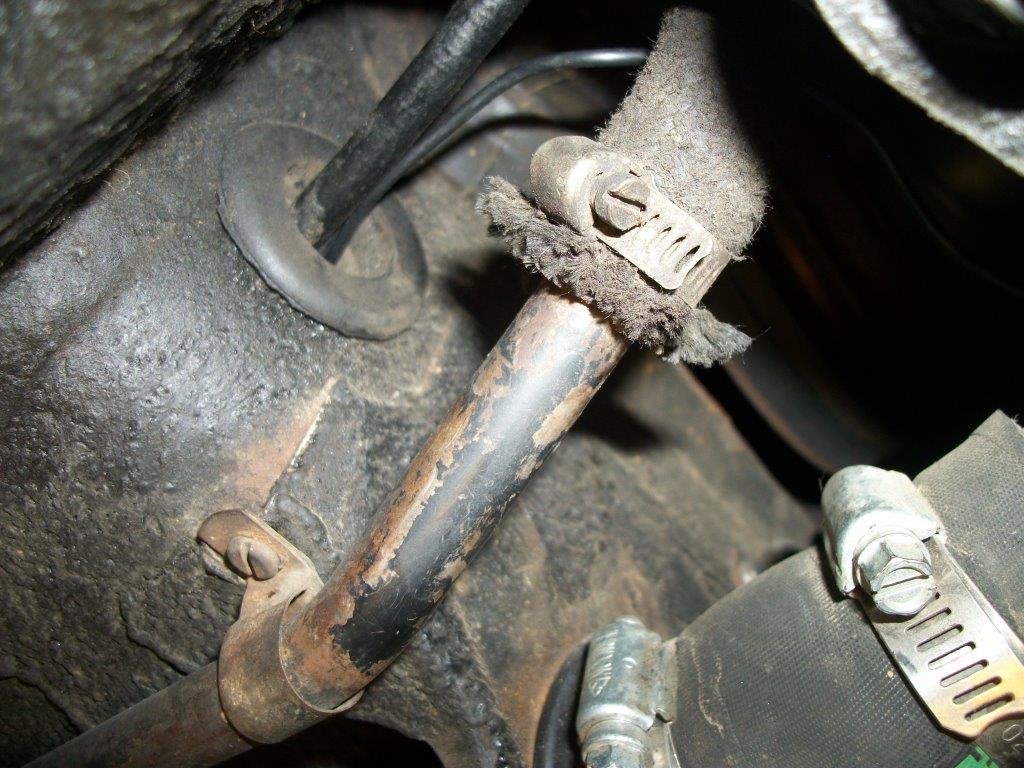

- The wire for the oil temp sender goes through the firewall in the same
grommet as the speedo cable.  I also ran the O2 sensor wires through there.

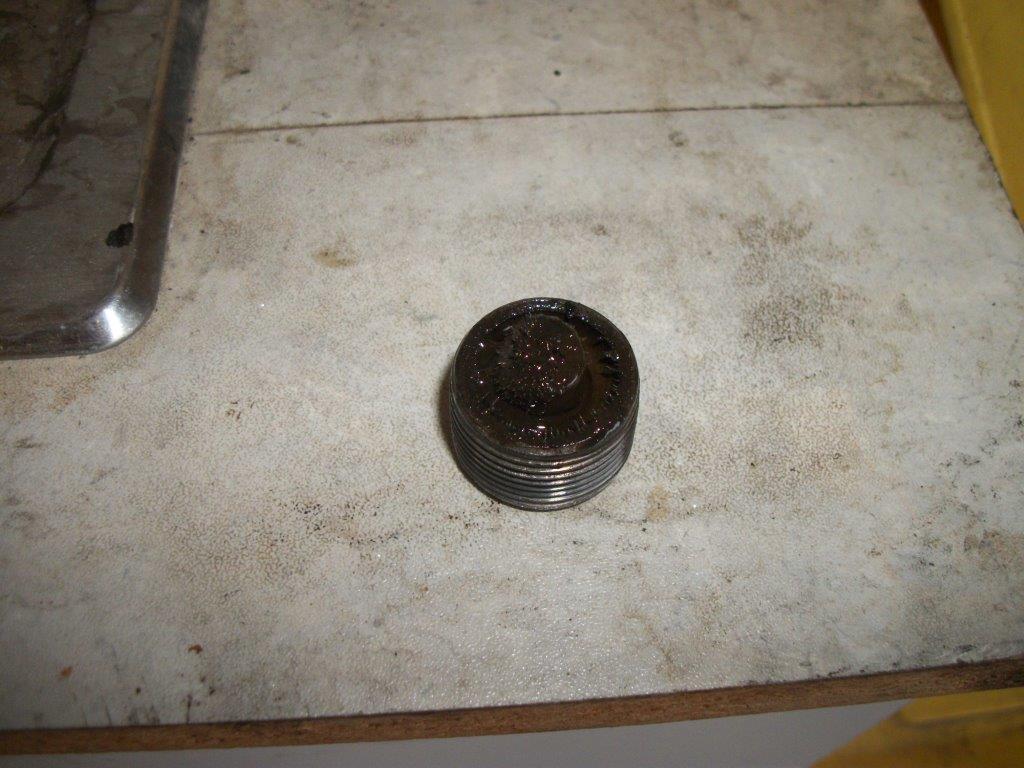

- I drained the ZF after getting back from the alignment shop; while the
fluid was warm.  The plug had some filings on it.  This trans has never
been rebuilt and it would be a good idea to do that in the next few years.

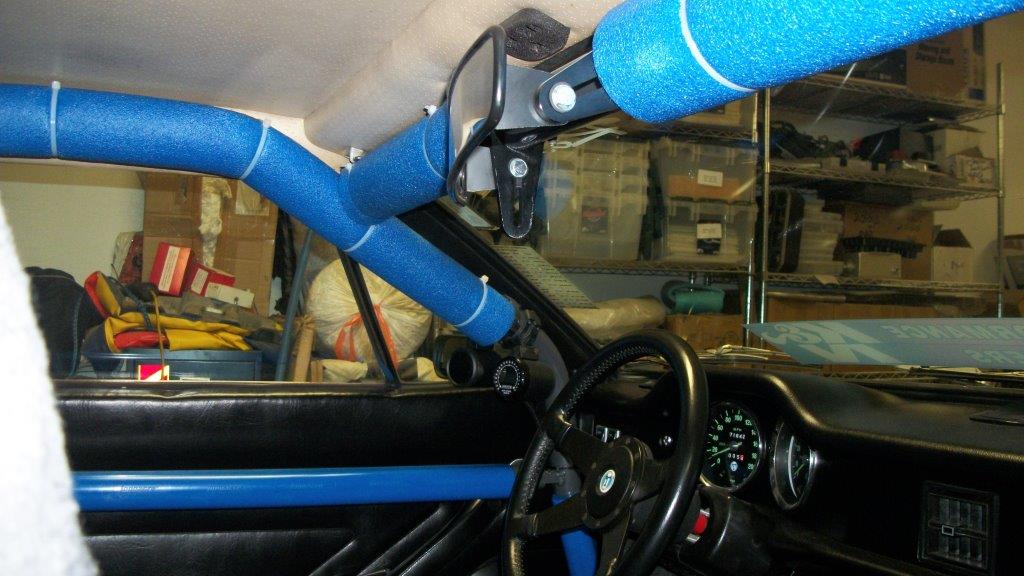

- Last, should be a shot of the drivers side interior showing the roll
bar padding in place.

I feel the engine is tuned the best I'm going to get it without putting
it on a dyno at this point.  The carb feels good, the pull feels good;
it seems pretty smooth, once warm it idles at about 650 and purrs.
Alignment is now done, ZF fluid is changed, roll bar padding is on.  Oil
temp sender works, A/F gauge works (it was -really- handy for setting
mixture).  New cap, rotor, plug wires, coil wire and spark plugs (NGK
UR4).  New tires are mounted, balanced and on the car; date codes are
are all early 2015, front are matched and backs are matched.

I think the Panther is ready.  :)

Now I have to check trailer wiring on the truck and match it to my
buddies trailer.  Go through the pre-flight checklist to make sure we
have everything like tools, drivers suit, helmet, etc. for the trip.
I'll be gone four days this next week, so my time is getting limited.

On the plus side.... Bullet -might- yet go; his physical therapy appears
to be doing some good.

Asa  Jay

--
Asa Jay Laughton - W7TSC, MSgt, USAFR, Retired
&  Shelley Marie
Spokane, WA
******************************
http://www.racingagainstautism.com
http://www.teampanteraracing.com
http://facebook.com/racingagainstautism
