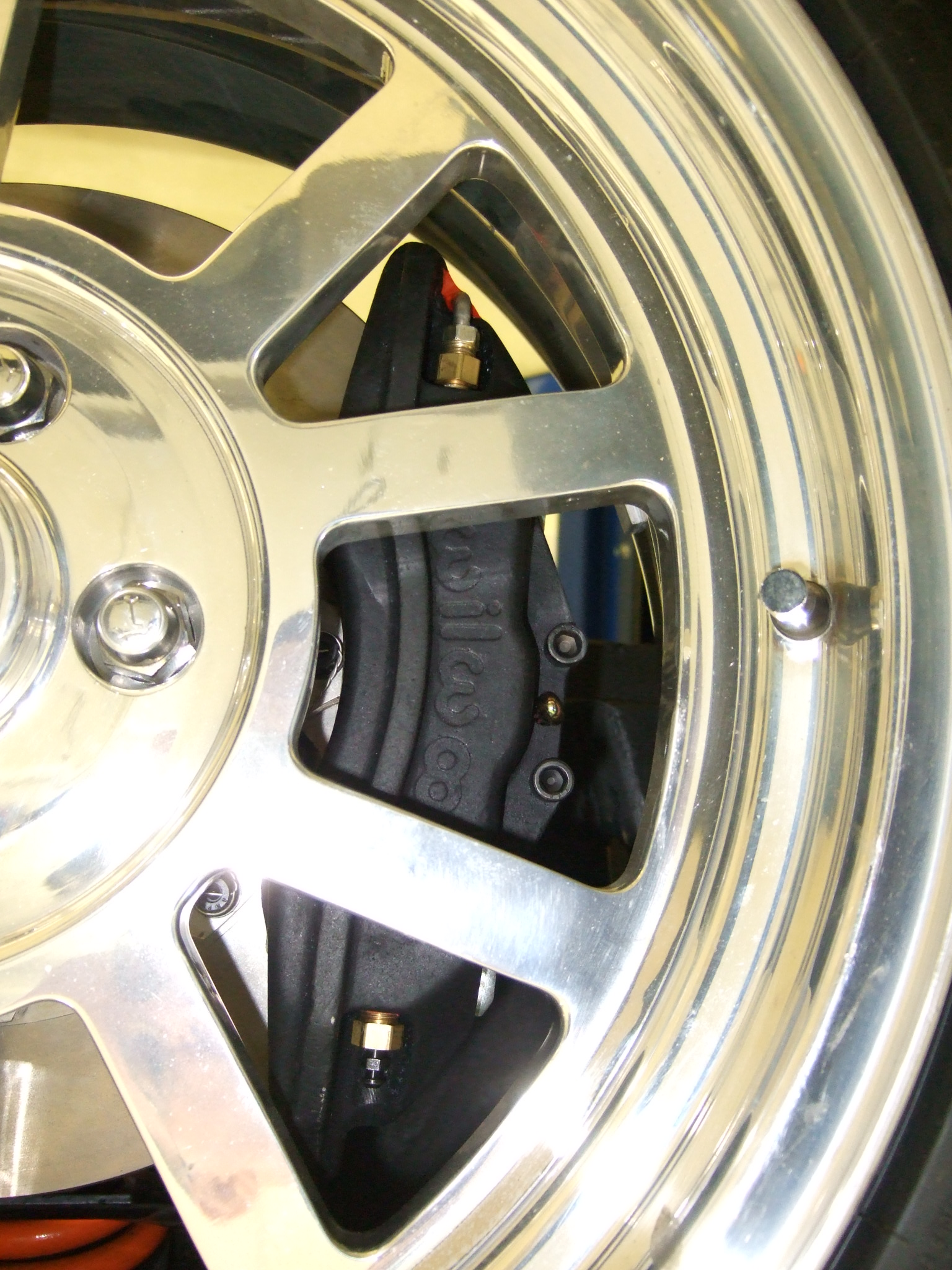

Photo 1 is the front caliper which is the "GN" Grand National unit.  I have
run 15" Gotti wheels with this setup and it should work with 15" Pantera
wheels.  These are 17" wheels.

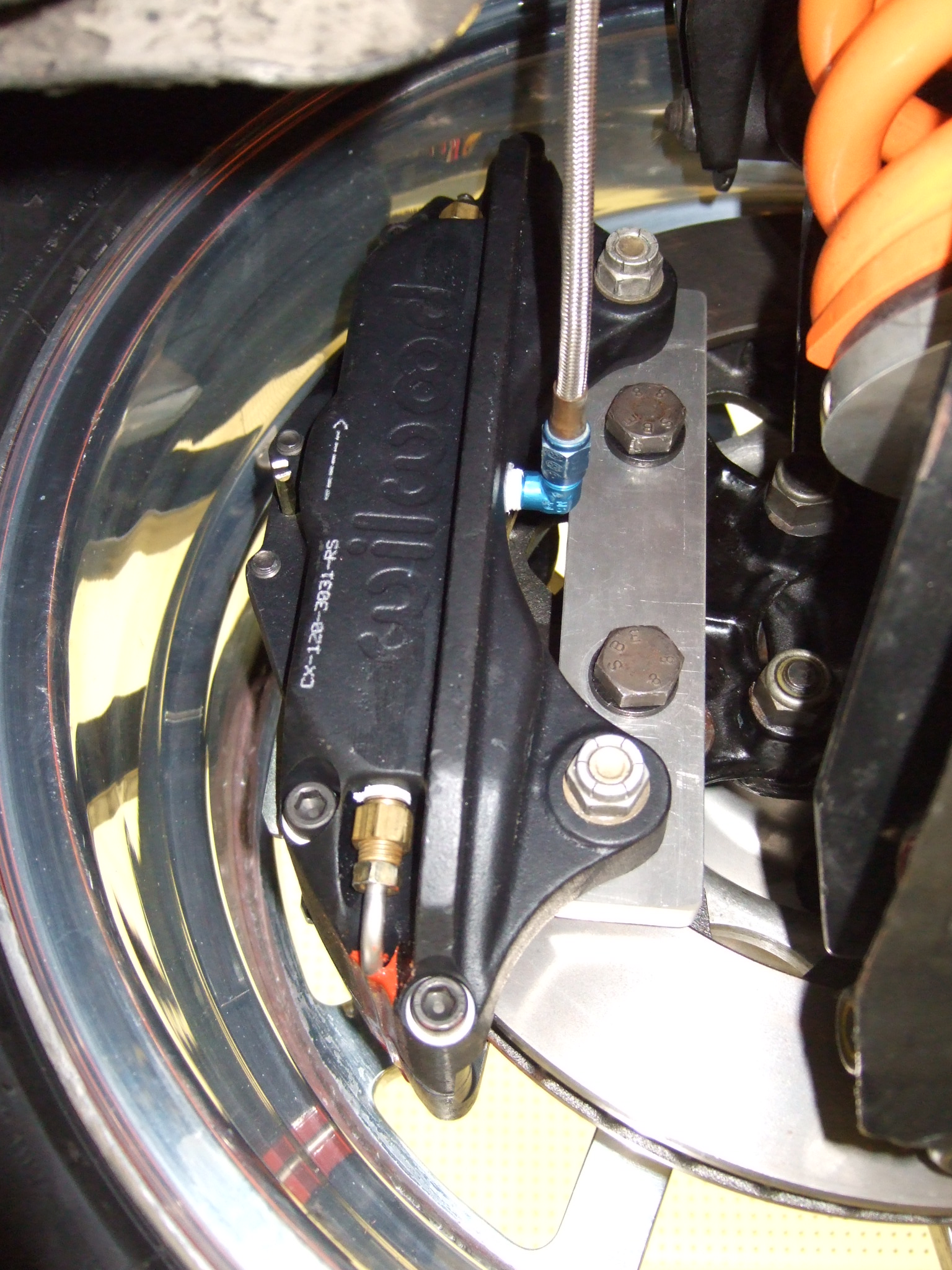

Photo 2 is the back side of the front caliper showing the required adapter.
The adapter is very easy to make.  You can also see the model number on the
caliper.  Note that they are left and right specific.  The last two letters
in the model number designates that.  Also note the massive clearance with
17" wheels.

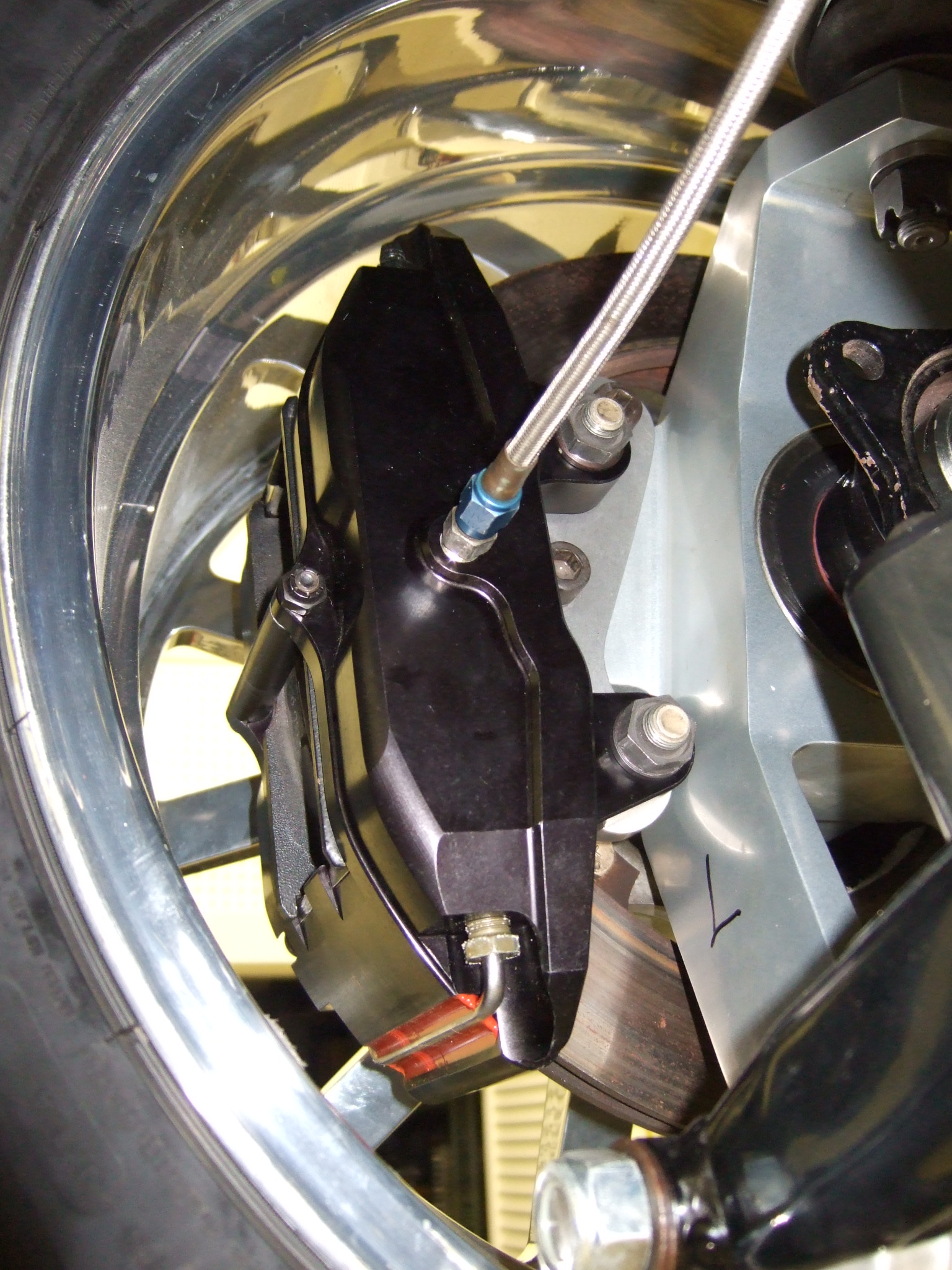

Photo 3 is the rear six piston caliper.  They are the Wilwood Billet
Superlite 6 lug mount calipers.  They are also side specific.

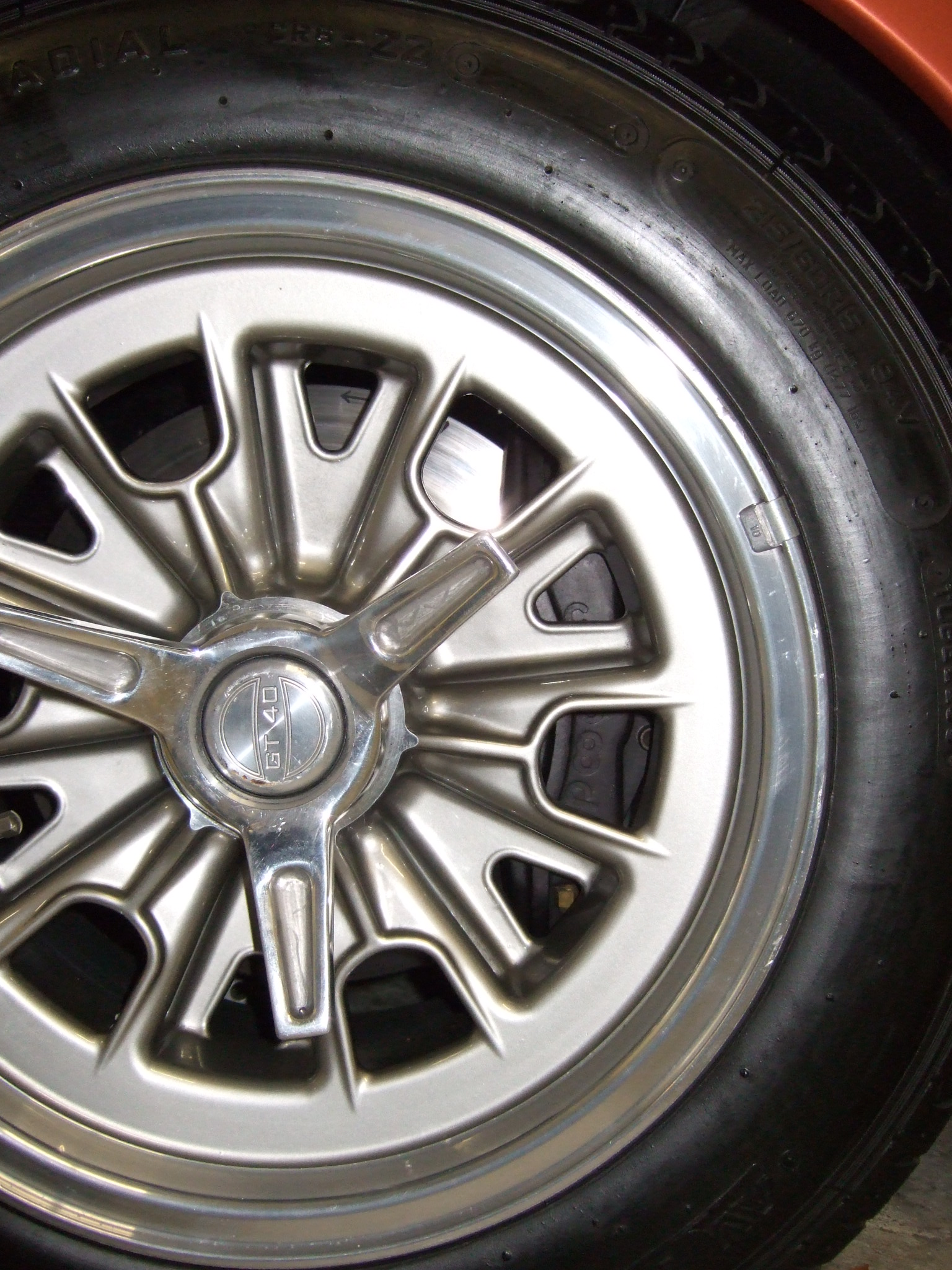

Photo 4 is a picture of the front 15" Halibrand wheel on my GT40 that uses
the same GN caliper with 12.19" rotors and they fit in this cast wheel.
Tight but fit with no mods.

These brakes were designed and used on 3,000 lb Winston Cup cars and are a
lot of brake for a Pantera.

I have driven Gary Halls Burgundy Express race car at Pocono with these
brakes.  He had a booster in the system and I considered them as too
sensitive with the booster.  Very touchy with the booster.  I use a manual
balance bar system and really like the feel.  The list price on the calipers
is about $385 each for the fronts and $374 each for the rears but you can
likely find them cheaper than that.

Mike Trusty
Mike Trusty Engineering
15119 Gorgeous View Trail
Little Rock, AR  72210
501-224-9013


-----Original Message-----
From: Patrick Hals [mailto:patrickhals at gmail.com]
Sent: Saturday, December 04, 2010 3:26 AM
To: Mike Trusty; tpr at teampanteraracing.com
Subject: Re: [TPR] GR4 Racing Brakes

Hello Mike,
Yes, please send ref.numbers and pics.
Asa, I was able to open the attachment, tks.
I'll get familiar with it so I can bombard the list with sexy Pantera pics
:>))
Good week end to you all !
Pat
----- Original Message -----
From: "Mike Trusty" <miketrusty at msn.com>
To: "'Patrick Hals'" <patrickhals at gmail.com>; <tpr at teampanteraracing.com>
Sent: Friday, December 03, 2010 11:31 PM
Subject: RE: [TPR] GR4 Racing Brakes


> Patrick:
>
> You might consider the Wilwood "GN" six piston calipers on the front with
> 12.19" rotors.  I also have a six piston Wilwood caliper on the rears with
> the same size rotors.  The rear caliper has a smaller displacement and I
> can
> get you the model number if you need.
>
> I have this system on both my Pantera and my GT40 and it works very well
> and
> it works with the 15" wheels that I have tried.  The Halibrands are tight
> but they fit.
>
> They are probably the most reasonably priced calipers out there that can
> stand up to what you will be putting them through.
>
> I can get you pictures and model numbers tomorrow if you like.
>
> Mike Trusty
> Mike Trusty Engineering
> 15119 Gorgeous View Trail
> Little Rock, AR  72210
> 501-224-9013
>
>
> -----Original Message-----
> From: tpr-bounces at teampanteraracing.com
> [mailto:tpr-bounces at teampanteraracing.com] On Behalf Of Patrick Hals
> Sent: Friday, December 03, 2010 4:01 PM
> To: tpr at teampanteraracing.com
> Subject: [TPR] GR4 Racing Brakes
>
> Hi Dawg
> Willing to improve Pantera racing brakes for a GR4 replica that I'd like
> to
> show you " live".
> What do you suggest ( not 997 R brakes please , something I can afford
> financially, with 15" FIA legal wheels for European racing)
> Is it possible to post pics on this forum ?
> Isn't it about time to improve the level of communication by posting pics
> ?
> Many thanks for your precious experience
> Pat
> Candy 2862- ADA 9628
> ----- Original Message -----
> From: <tpr-request at teampanteraracing.com>
> To: <tpr at teampanteraracing.com>
> Sent: Friday, December 03, 2010 9:00 PM
> Subject: TPR Digest, Vol 2, Issue 3
>
>
